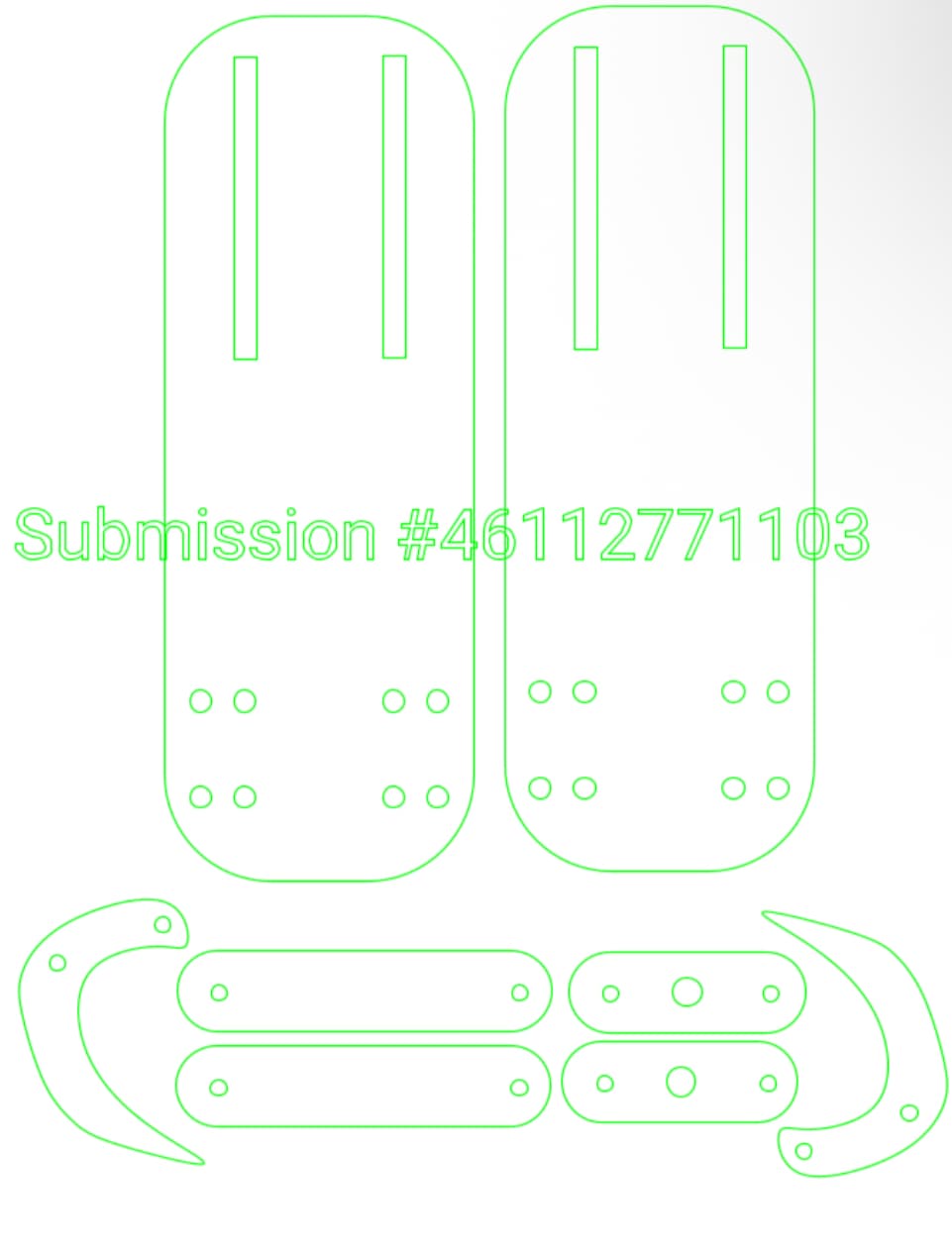

Puppy Pi Claw 2d design
Mechanical gripper along with mounting hardware to robot. Final assembly with pins.
Puppy Pi Claw Showcase
Puppy Pi Claw gallery
Explore the Puppy Pi Claw concept, including prototype visuals and interface previews. Each card is designed to show the growing image gallery and to scale with content.

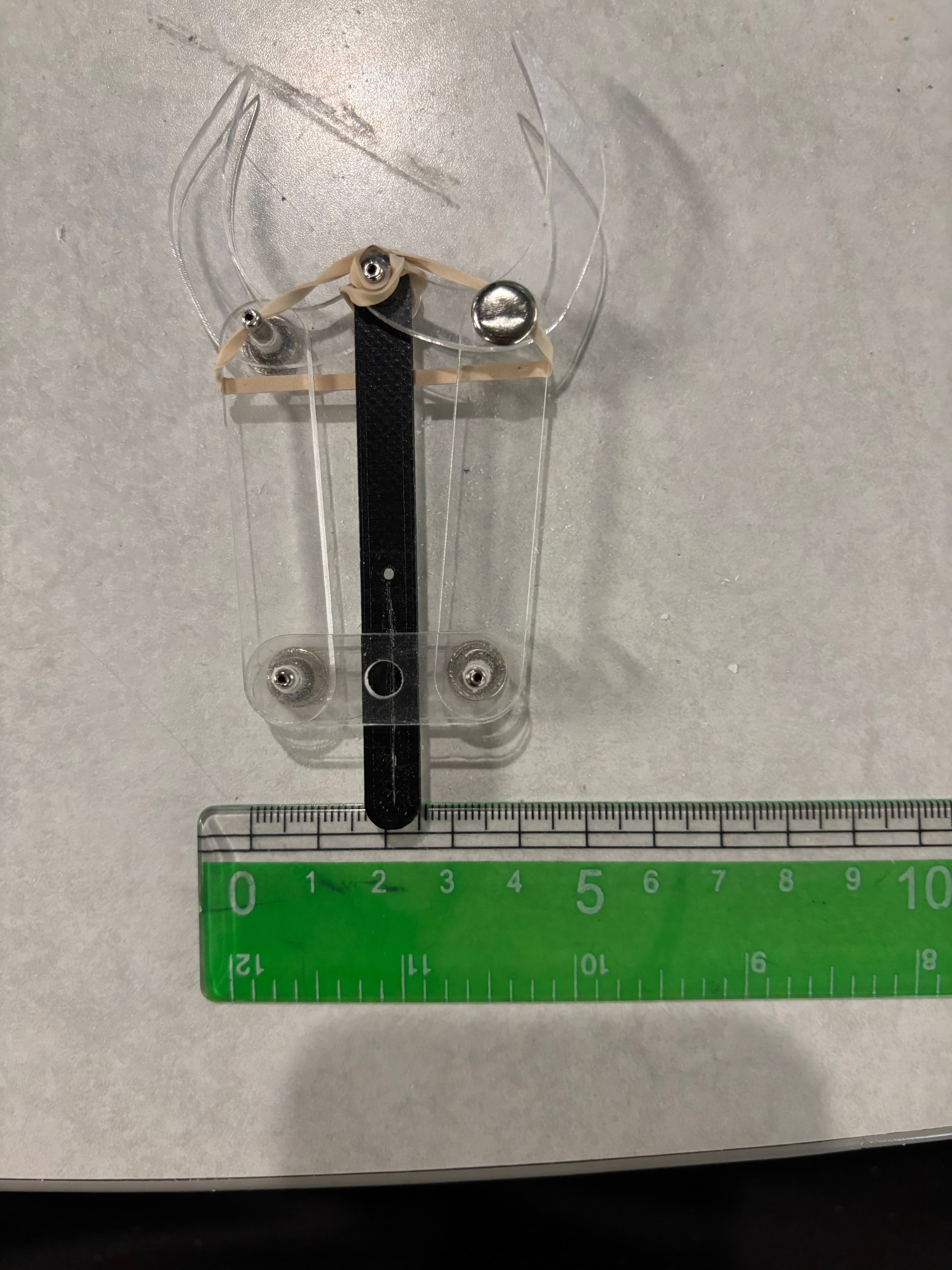

claw prototype w/ push-pin locking mechanism
The claw locks into position when the spring loaded push-pin reaches the designated point.
Final assembly

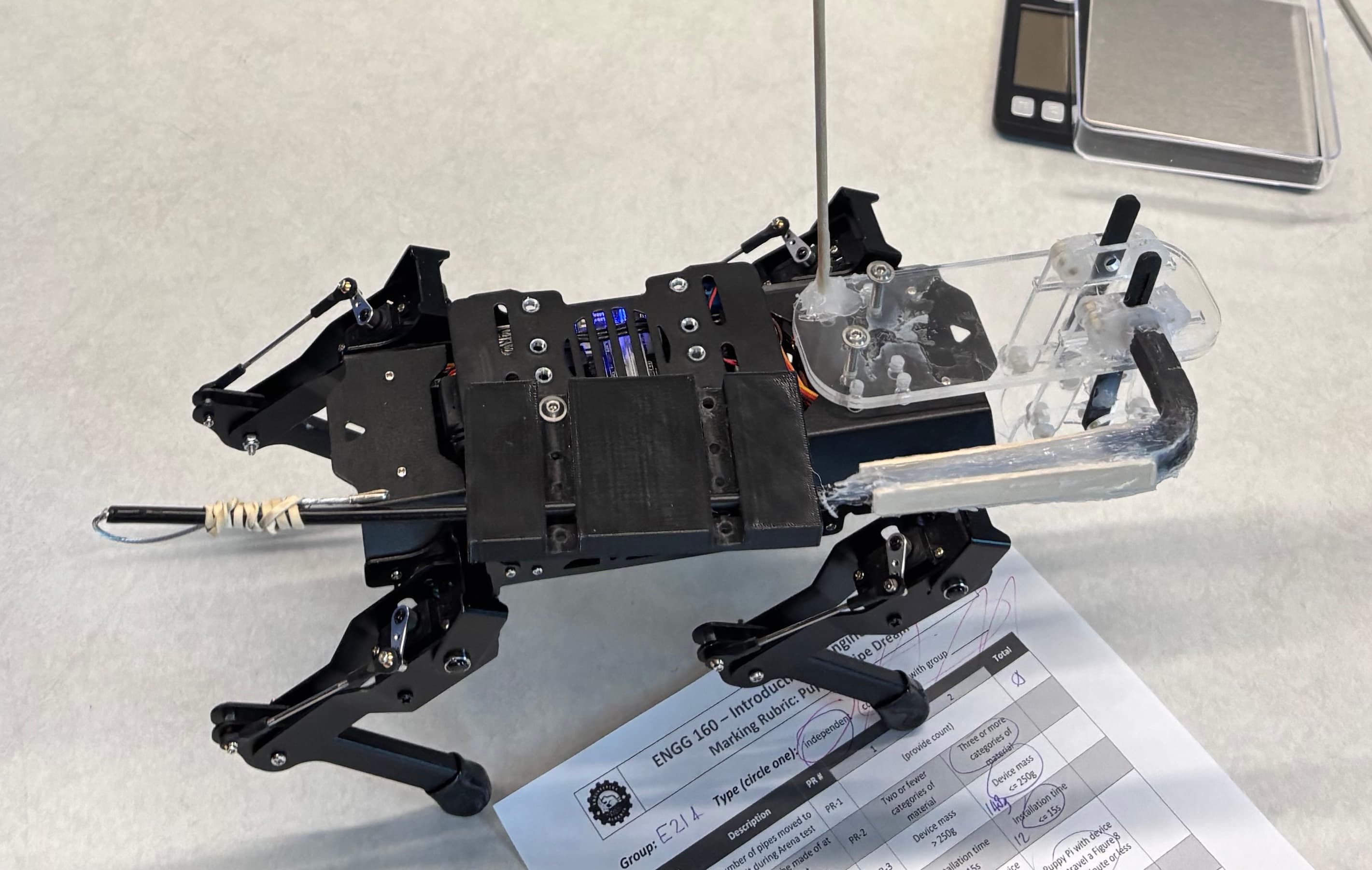

Installation on puppy pi robot. The claw is mounted on the front of the robot, with a bowden cable running to a leg motor at the back for actuation.
Showcase usage
Project Limitations: The claw's gripping strength is limited by the passive mechanism, making it less effective for heavier objects. This was a byproduct of the design constraints and the focus on simplicity and reliability. Electronics were not in scope for this project, so the claw is manually actuated via a bowden cable connected to a leg motor.
